Low water clouds

Low water clouds
Night Microphysics RGB
Satellite Instrument

Low water clouds depict in pastel green colours in the Night Microphysics RGB images.

When a colour appears in a pastel tone, the contribution from all 3 channels is relatively high and we get a high amount of white mixed to the colour (e.g. whitish green).

The BTD (IR12.0 - IR10.8) responsible for the red colour beam is near zero on a scale reaching from -4 (dark) to +2 degrees (intensive red). Hence, the red colour contribution has an average value.

The green colour beam is of varying intensity depending on the thickness of the low cloud layer. The thinner the low cloud layer, the smaller the green contribution. This makes the colour turn into magenta (red+blue=magenta), i.e. the colour of cloud free land. On the other hand, when the low level cloud becomes thicker, the colour turns into red (less green and blue).

The blue colour beam is contributing with an average value. The warmer the low cloud is, the more the radiation from IR10.8 is contributing to the blue colour intensity.

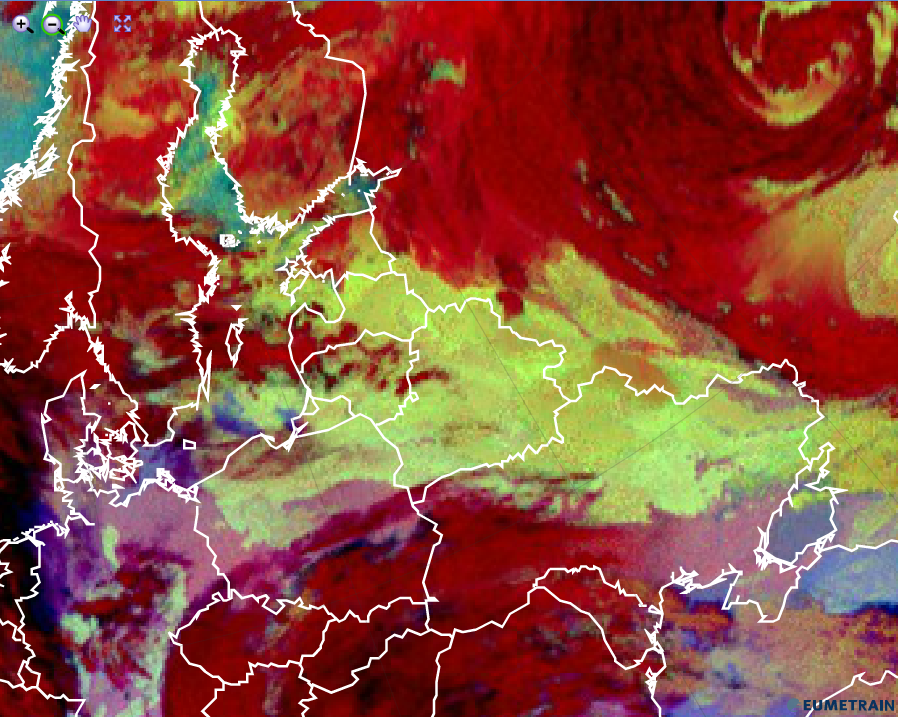

The Night Microphysics RGB image below shows an extended area of low water clouds from the Baltic States to the Ukraine. In the winter season, the pastel green colour can become very intensive.


Night Microphysics RGB from 10 January 2016, 00:00 UTC

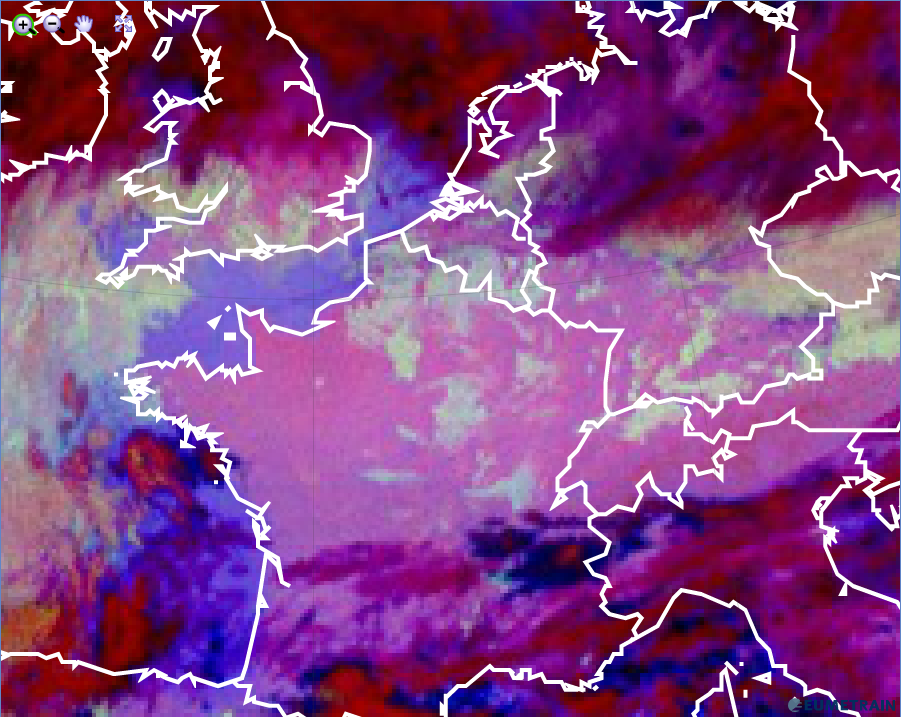

When low water clouds are warmer (e.g. in the summer season), the colours turns into a greyish blue as the blue colour beam becomes more intensive.


Night Microphysics RGB from 26 October 2015, 00:00 UTC

Explanation of the pastel green colour of low water clouds in the Night Microphysics RGB (see the recipe):

• All 3 colour beams contribute largely in case of low level water clouds. The green colour beam is sensitive for low water clouds, using the BTD (IR10.8 - IR3.9) which is widely used to detect low stratus and fog in the night.
